Commercial Battery Energy Storage Solution
North Carolina–based support team providing: fast shipping from our U.S. warehouse, sales engineering and system design support, technical troubleshooting and diagnostics, and post-installation support.

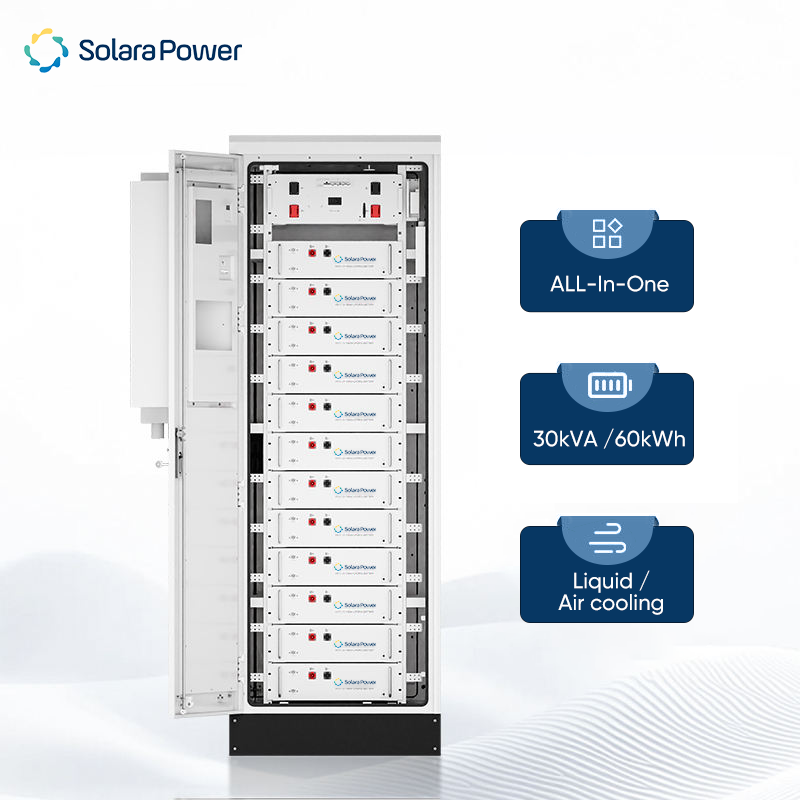

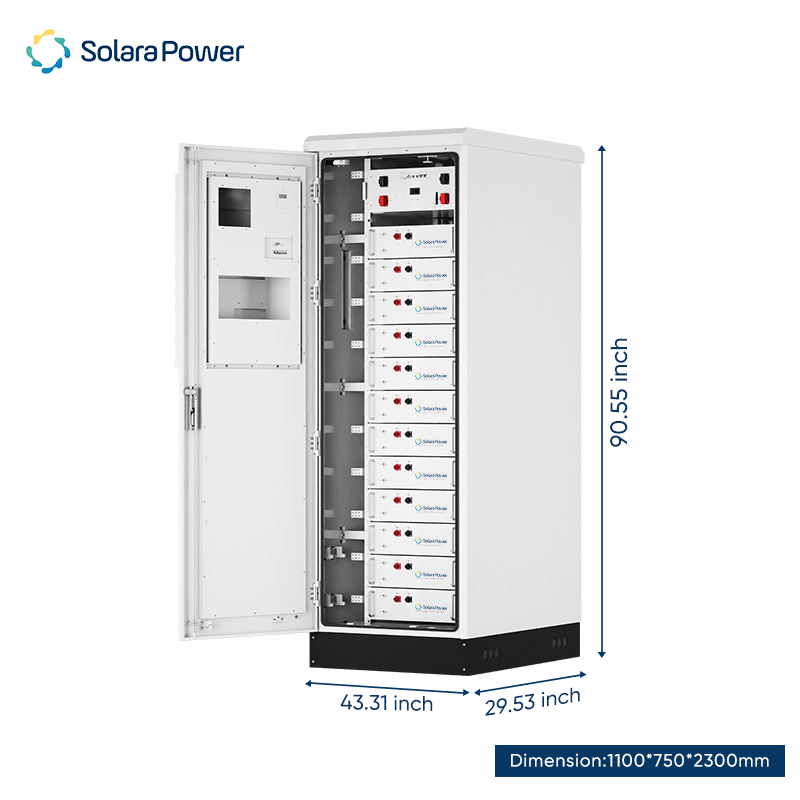

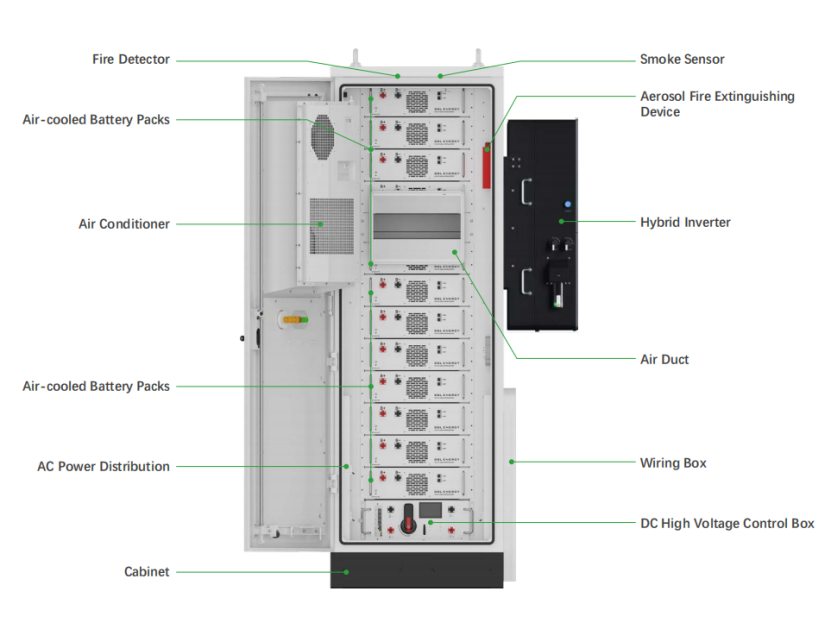

60 KWh Outdoor Battery Cabinet
Capacity: 61.4 kWh
Nominal Voltage: 614.4V
Nominal Capacity: 100 Ah
Maximum System Energy: 300 kWh
Cycle Life: ≥ 6,500 cycles @ 70% EOL (25°C, 0.5C/0.5C)
Weight: 1,721 Ibs
Warranty: 10 Years
IP Rate: IP 55
Safety & Compliance: UL 1973, UL 9540, UL 9540A, IEC 62619, CE, UN38.3, MSDS

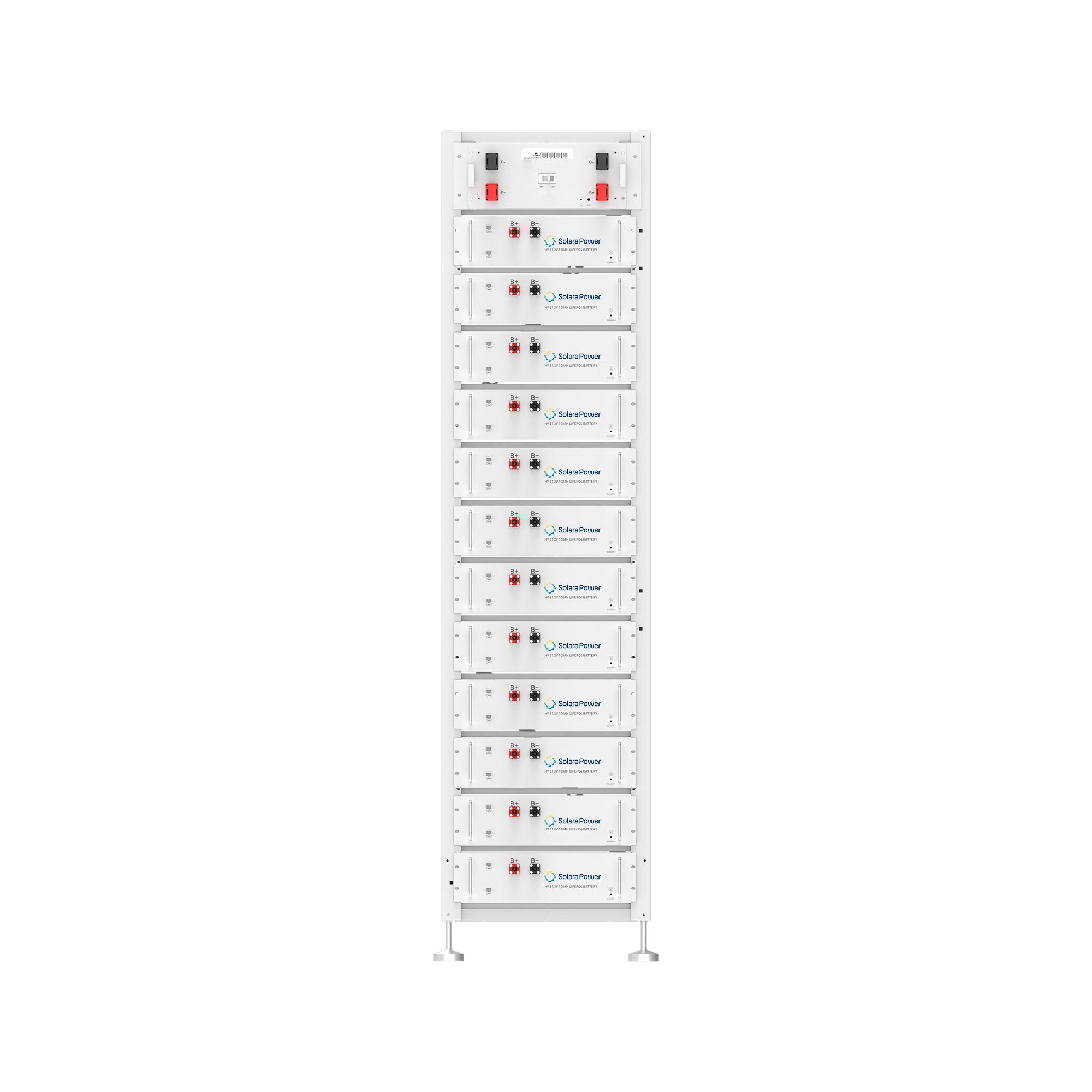

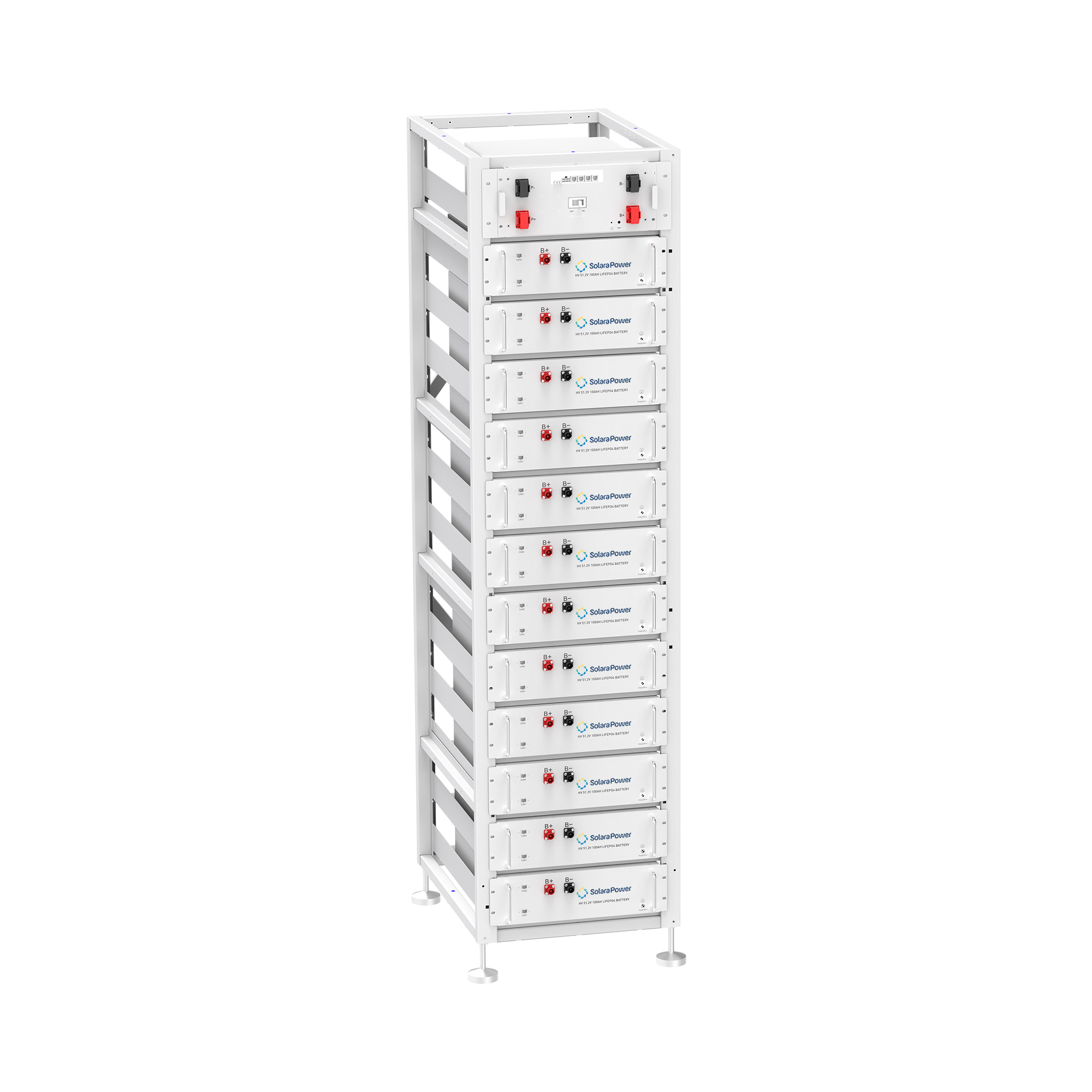

60 kWh Indoor Rack Battery
Capacity: 61.4 kWh
Nominal Voltage: 614.4V
Nominal Capacity: 100 Ah
Maximum System Energy: 300 kWh
Cycle Life: ≥ 6,500 cycles @ 70% EOL (25°C, 0.5C/0.5C)
Weight: 1,284 Ibs
Warranty: 10 Years
IP Rate: IP20
Safety & Compliance: UL 1973, UL 9540, UL 9540A, IEC 62619, CE, UN38.3, MSDS

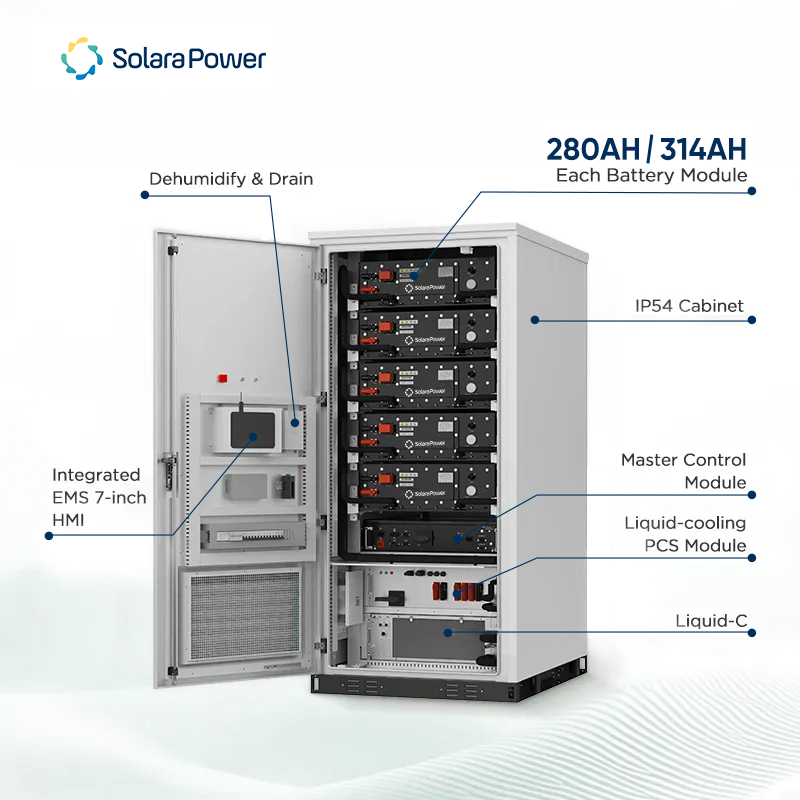

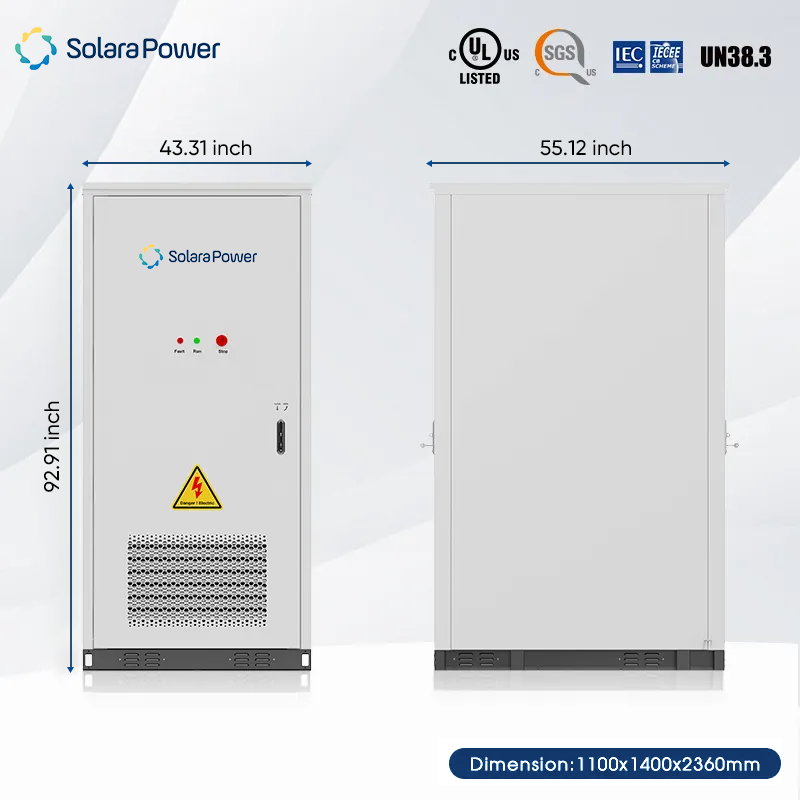

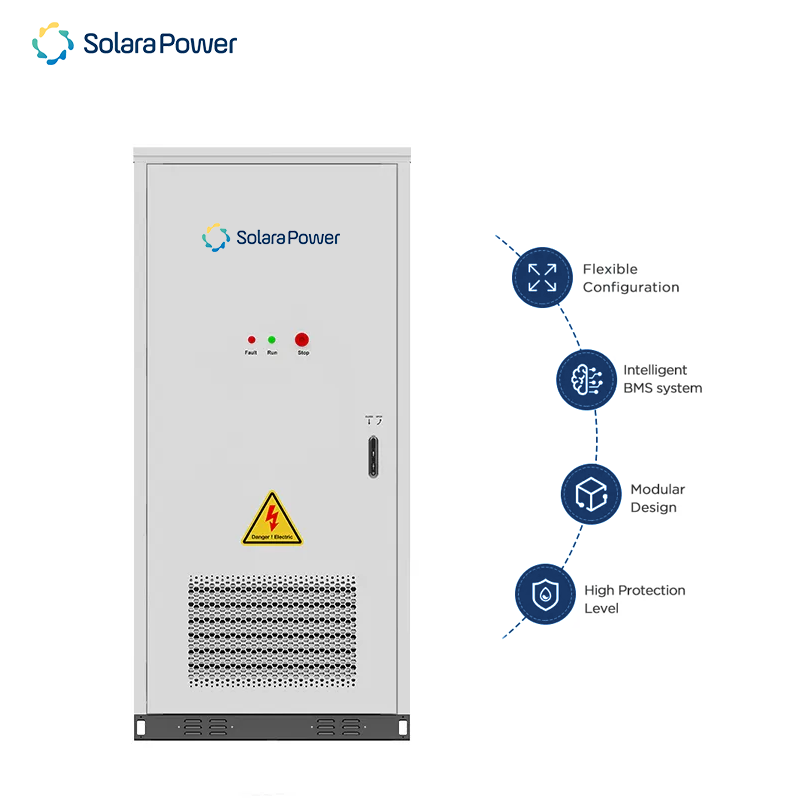

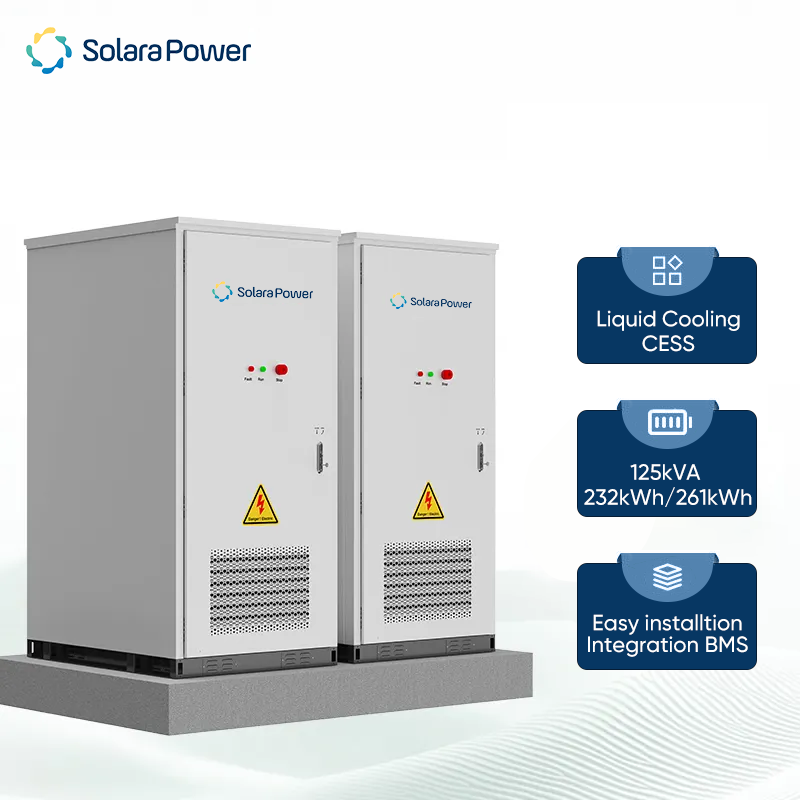

125K261 All-in-One System
Power:125kW(PCS)
Capacity: 261 kWh
Nominal Voltage: DC 728 V ~ DC 949 V
Nominal Capacity: 314 Ah
Maximum System Energy: 1305 kWh
Cycle Life: ≥ 6,500 cycles @ 70% EOL (25°C, 0.5C/0.5C)
Warranty: 10 Years
IP Rate: IP 55
Safety & Compliance: UL1973, UL9540A, IEC62477-1, IEC61000, UN3536

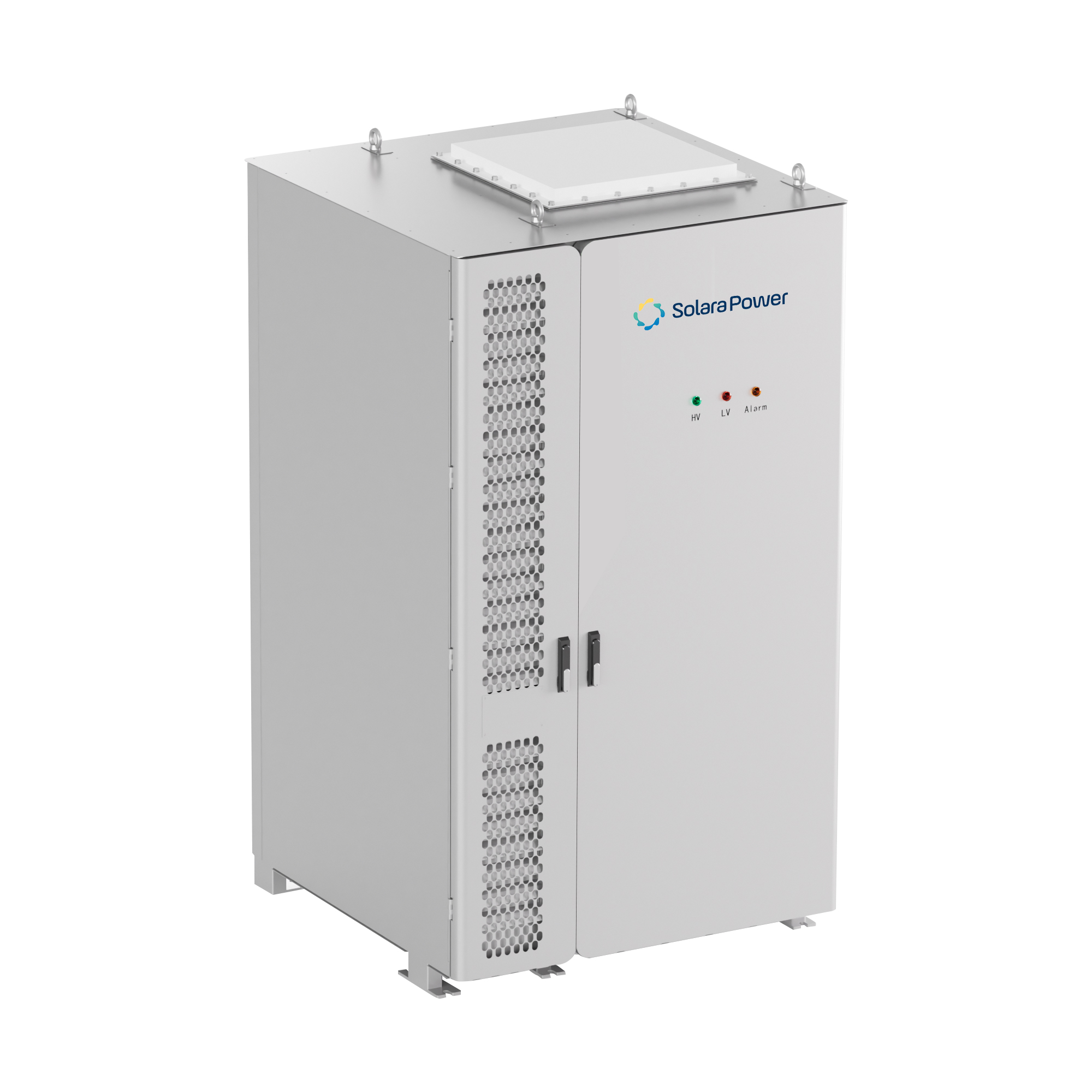

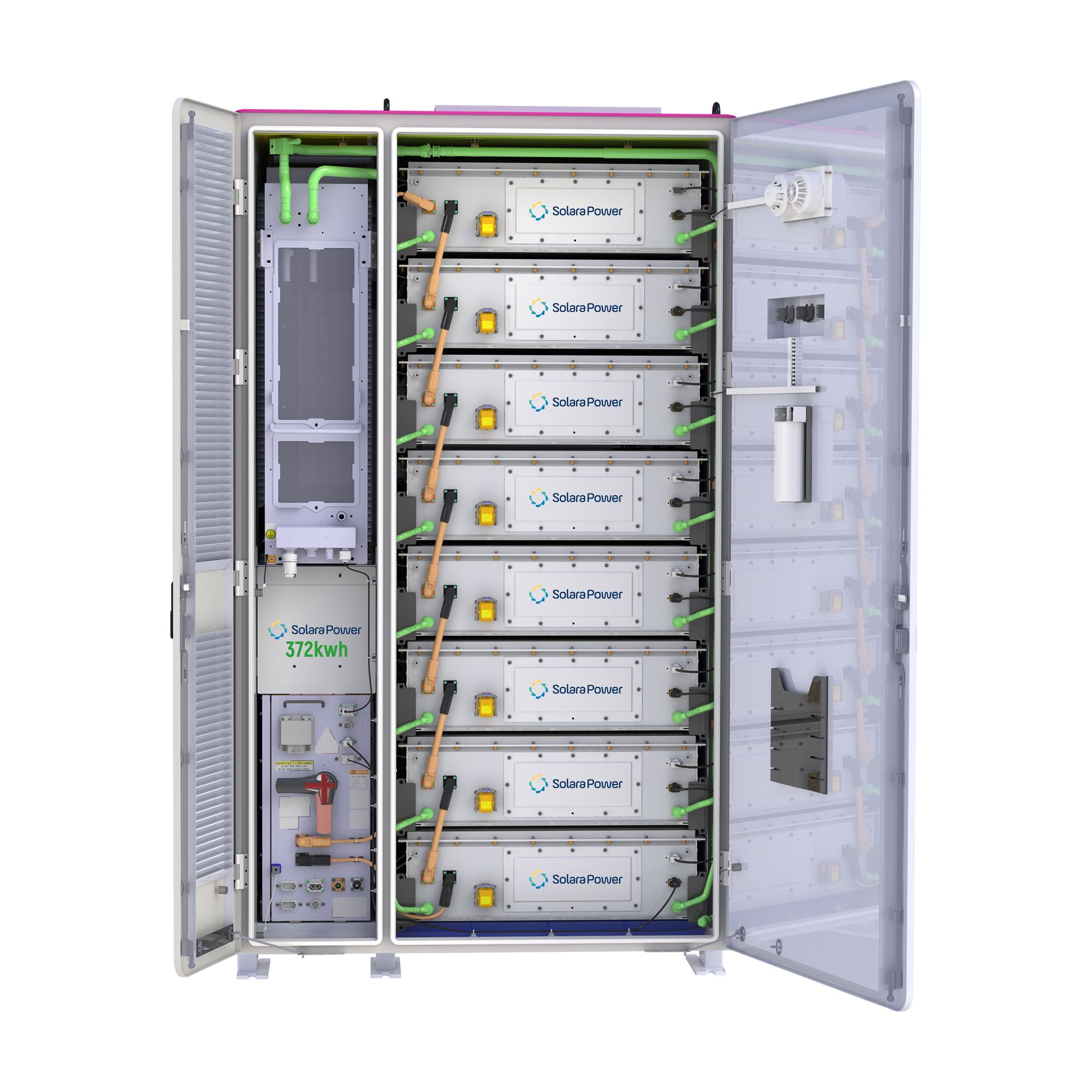

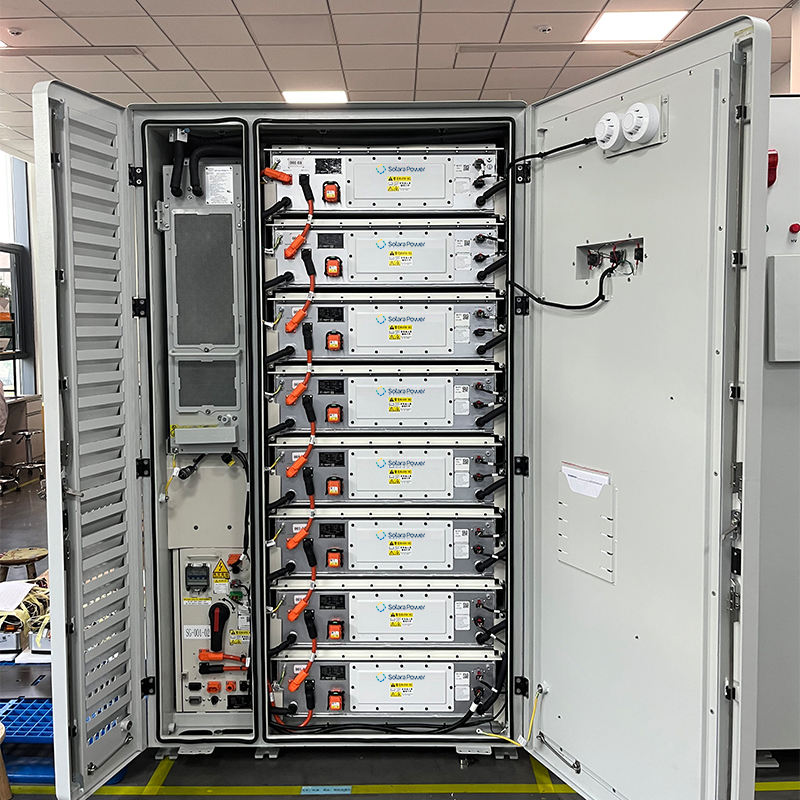

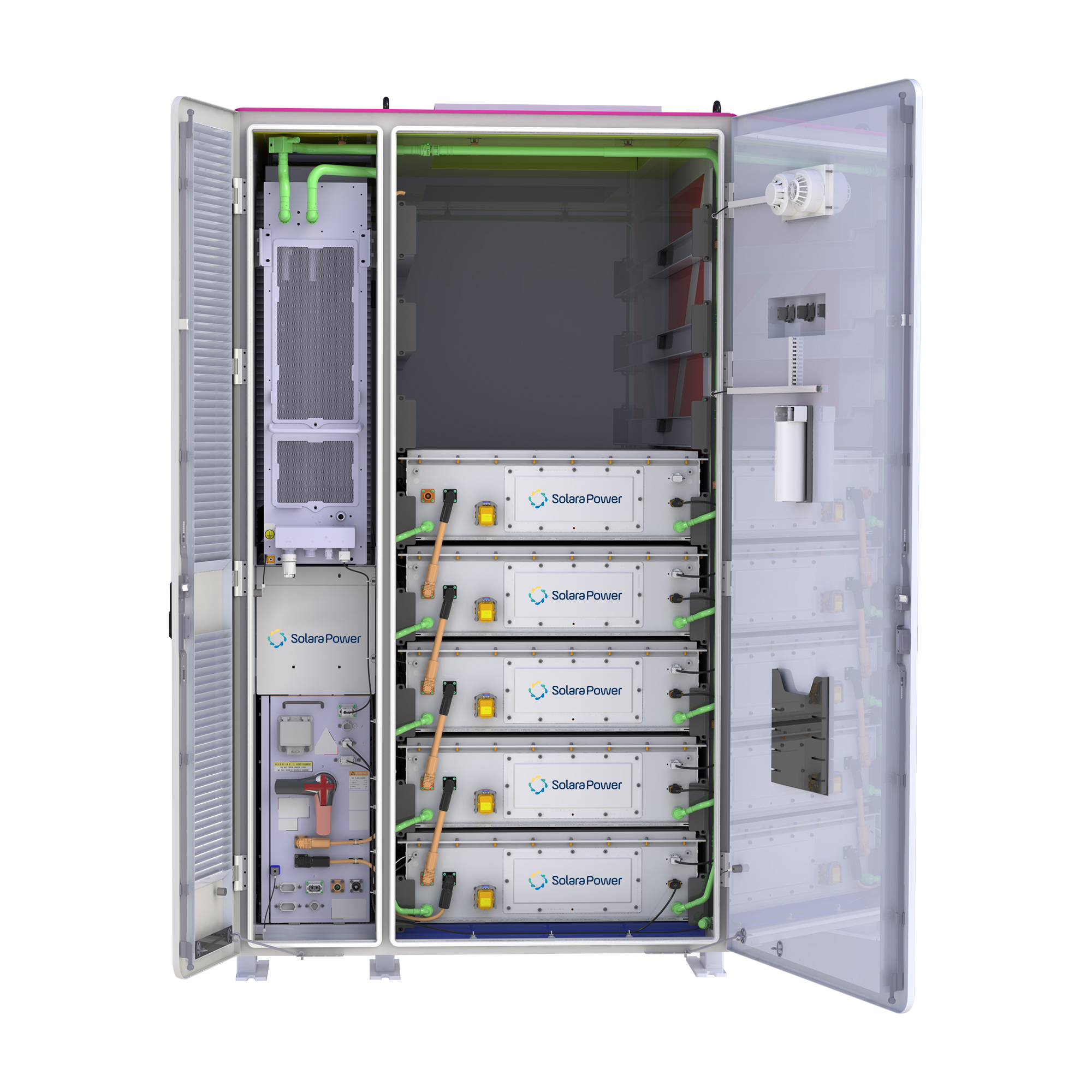

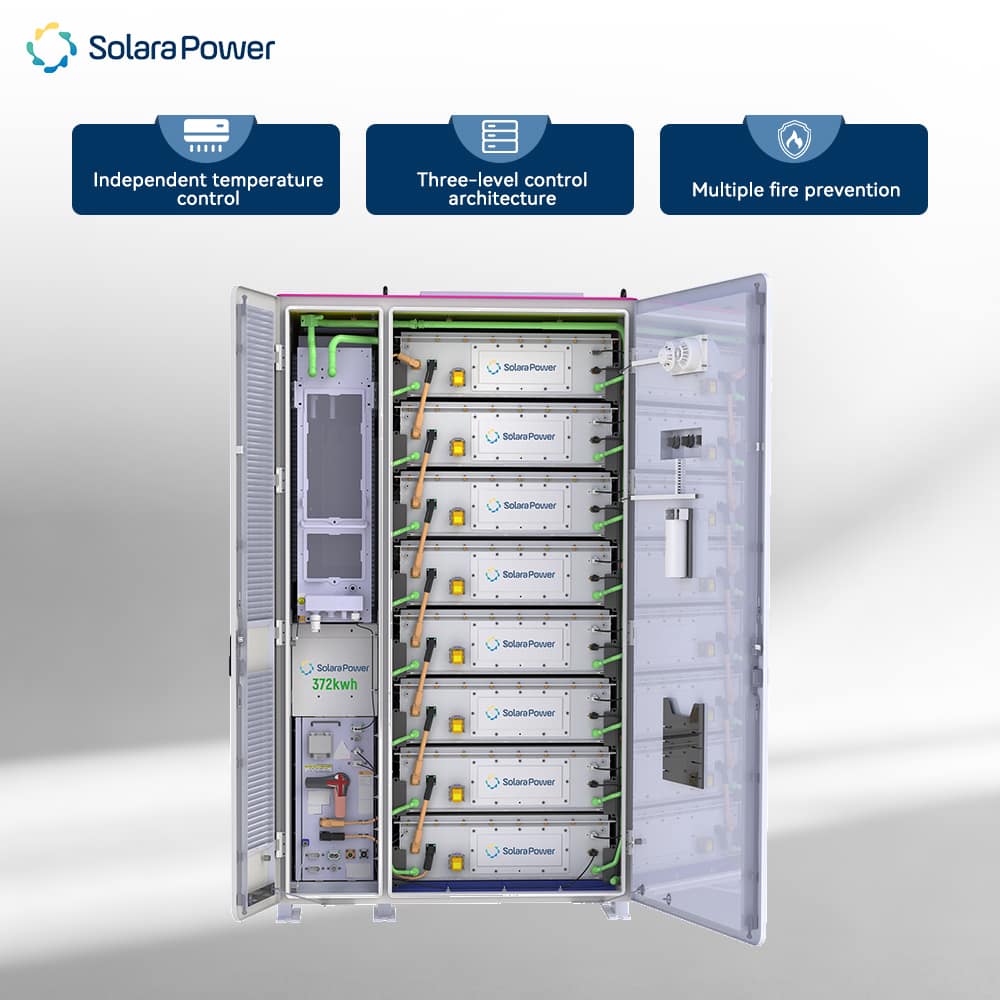

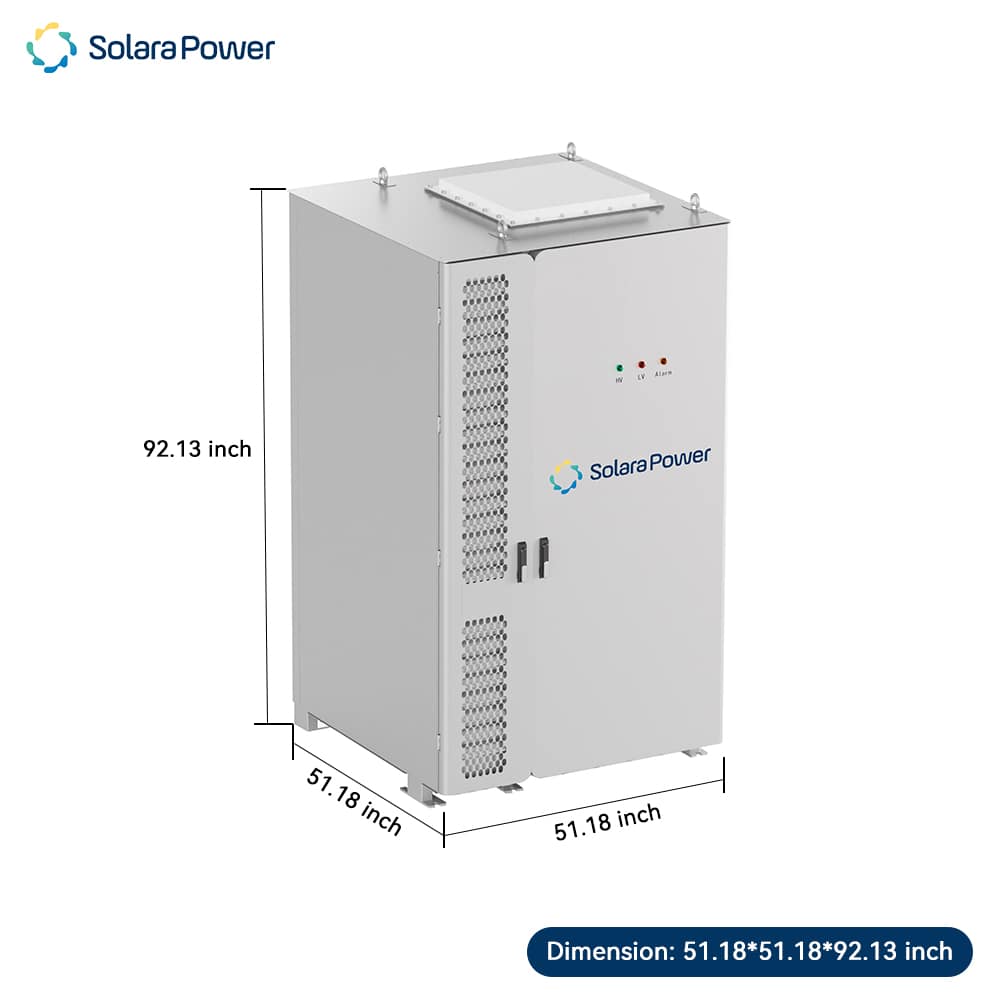

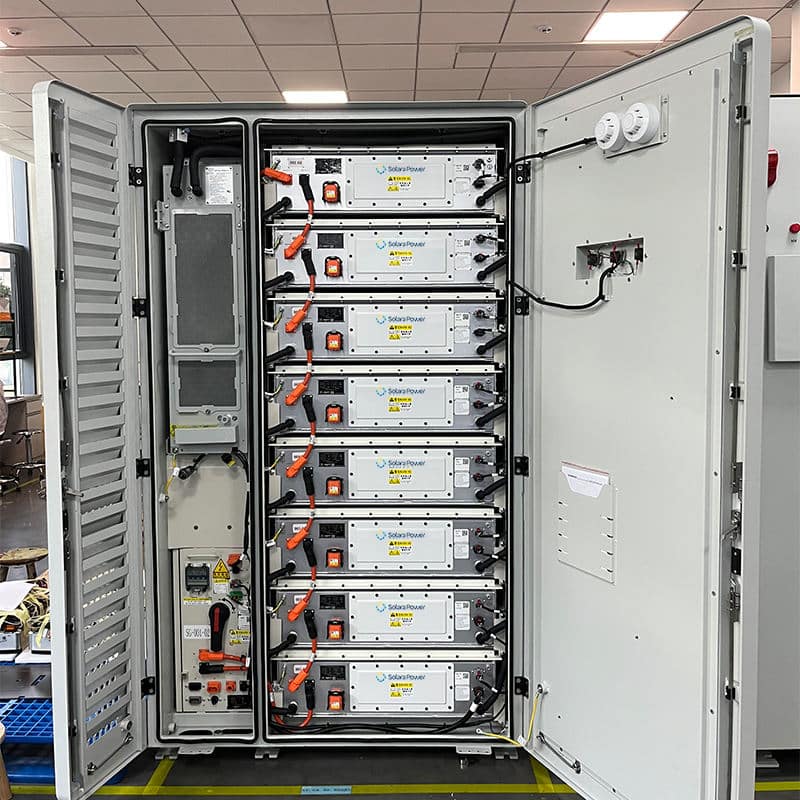

372 kWh Battery Cabinet
Capacity: 372.7 kWh
Nominal Voltage: 1331.2 V
Nominal Capacity: 280 Ah
Maximum System Energy: 1860 kWh
Cycle Life: ≥ 6,500 cycles @ 70% EOL (25°C, 0.5C/0.5C)
Warranty: 10 Years
IP Rate: IP55
Safety & Compliance: UL1973, UL9540A, IEC62477-1, IEC61000, UN3536
5 MWH Battery Cabinet
Capacity: 5MWH
Nominal Voltage: 1331.2V
Service Life: >10000 cycles@80%DoD
Thermal Management Mode: Liquid cooling technology
Storage Conditions:–20°C to 30°C, Up to 95% RH, non-condensing State of Energy (SoE): 50% initial
Certifications: UN9540A, UL1973, NF P69, UN3536, IEC62619, IEC63056, GB/T36276-2018, GB/T 36276-2013, etc.
Dimensions: 20HQ / 8200W *2438D *2896H mm / 322.8*95.9*114.0 in
Weight: ≈43t / ≈123459 Ibs
Warranty: 10 Years
IP Rate: IP 55
